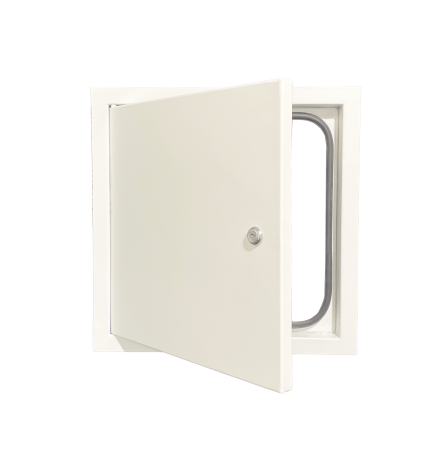

Exterior Access Door (SS-AP244)
Water Resistant Access Pannel for Exterior Applications
Technical Data
The SS-AP244 is a robust, high-quality exterior access panel with advanced water resistant technology. Its thermoplastic EPDM rubber gasket provides excellent compression and temperature durability, ensuring a reliable and long-lasting seal suitable for various exterior applications. Additionally, excellent for water penetration resistance: no leakage at 2.92 psf – ASTM E 331
Specifications
Door:
18 gauge galvanized steel and flush to frame
Frame:
18 gauge galvanized steel welded frame with 1” wide flange
Hinge:
Concealed Pin Hinge
Latch:
Screwdriver operated cam latch
Optional Lock:
Cylinder lock and key
Insulation:
13/16" (21mm) Polyurethane board with Aluminum foil
Gasket:
Trim seal with EPDM rubber bulb
Finish:
White (RAL9016) powder coating

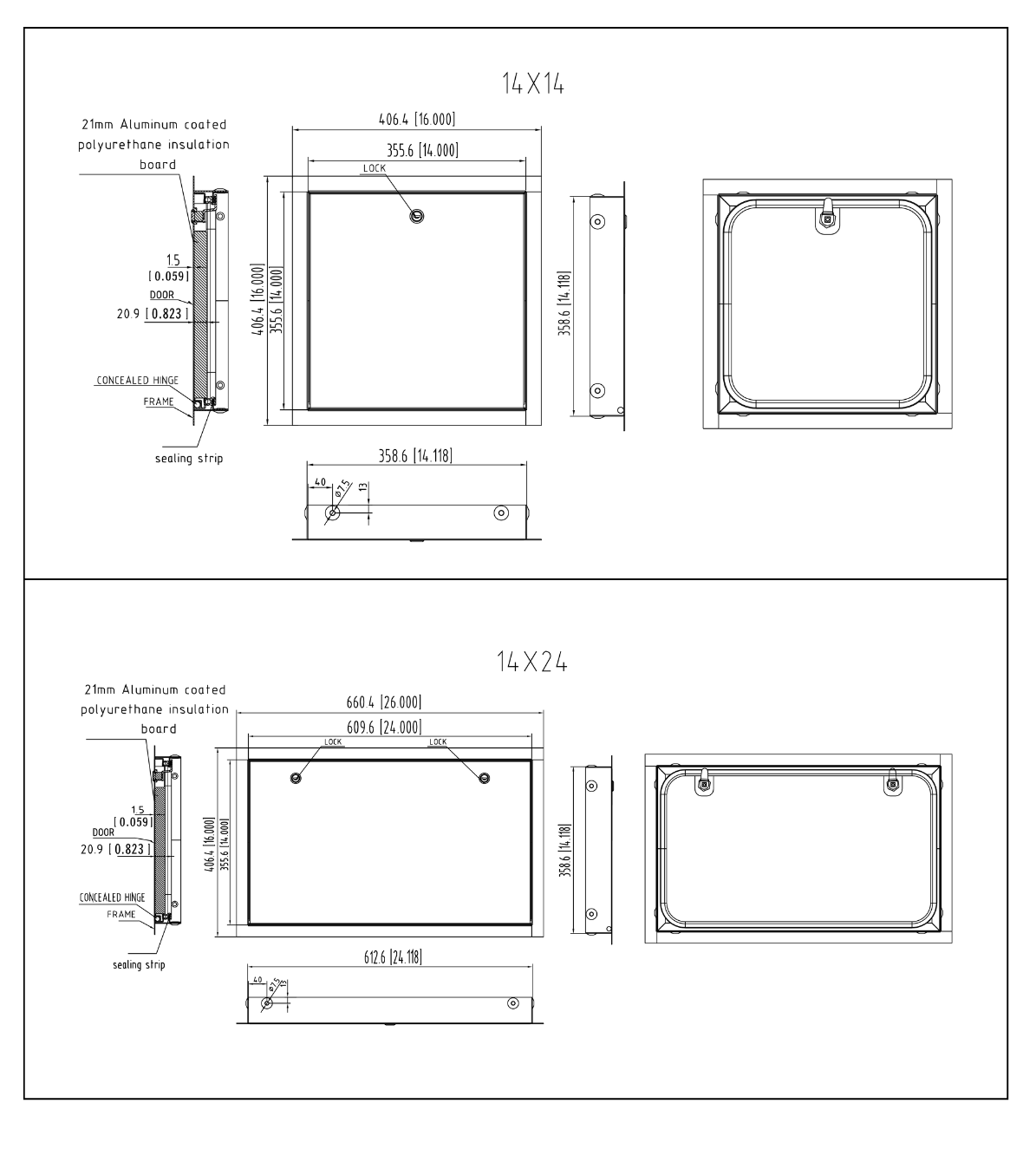

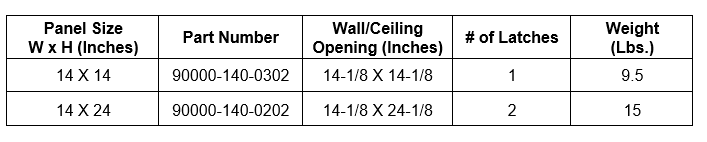

Standard Size:
