RC-RES 5.8K (SS8561)

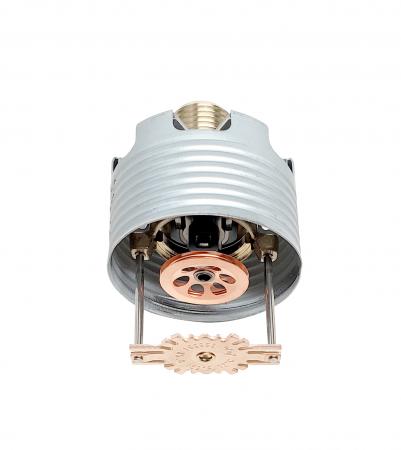

Residential Flat Concealed Pendent Sprinkler

Technical Data
Approvals 04 K  Factor      K=5.8 (83.6)   Thread Size    1/2" NPT   Temperature
  • 162°F / 72°C Sprinkler with 140°F / 60°C Cover Plate
  • 175°F / 79°C Sprinkler with 140°F / 60°C Cover Plate
  • 175°F / 79°C Sprinkler with 162°F / 72°C Cover Plate
Vertical Adjustment    1/2 inch (12.8 mm)   Available Cover Plate Options Color:White, Ivory, Beige, Brown, Black, Nickel, Copper, Woodgrains, Custom Color and Pattern Size:3-1/4" Round, 2-5/8" Round, 2-5/8" Square   NR-H wrench socket is required to install RC model sprinklers.
Feature
  • Solder type
  • Ideal for use in wet pipe residential sprinkler systems per NFPA 13D, 13R, and 13.
  • Standard cover plate is 3-1/4” (83mm) in diameter
  • Smaller 2-5/8” (68mm) cover plate and 2-5/8” (68mm) square cover plate are also available
  • Cover plates are available in 11 standard finishes and unlimited custom color and pattern finishes
  • Can be used for multipurpose and stand-alone residential sprinkler systems.
  • Can be installed in fewer steps and less time.



6pt WARNING: Cancer and Reproductive Harm www.P65Warnings.ca.gov
